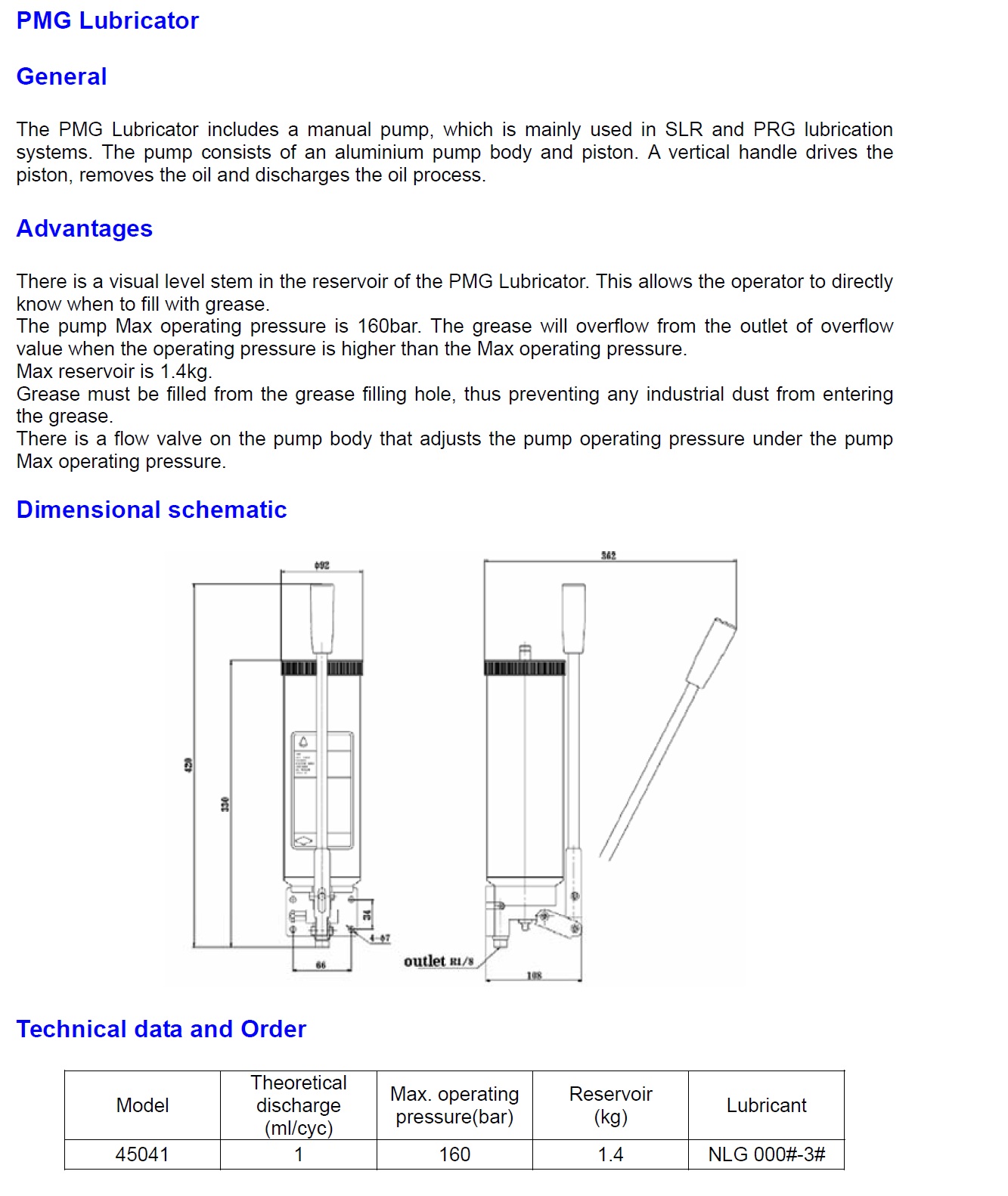

PMG Lubricator includes a manual pump, which is mainly used in SLR and PRG lubrication system. The pump consists of alum pump body and piston. A vertical handle drive piston moving, then finish suck oil and discharge oil process.

Advantages

There is a visual level stem in the reservoir. Then operator can directly know whether to fill grease.
The pump Max operating pressure is 160bar. The grease will overflow from the outlet of overflow value when operating pressure is higher than Max operating pressure.
Max reservoir is 1.4kg.
Fill grease must from grease filling hole, so it can prevent any industrial dust into grease.
There is a flow valve on the pump body, which can adjust the pump operating pressure under the pump Max operating pressure.
